DIN88 vs DIN100: European Heavy-Duty Battery Comparison¶
TL;DR — DIN88 (58827) is the standard European heavy-duty battery at 88Ah / 800A EN; DIN100 (60038) is the larger option at 100Ah / 870A EN. Choose DIN100 for more cranking power or higher electrical load if your tray fits it; otherwise DIN88 is lighter and cheaper.
Key Takeaways¶
- The DIN100 upgrade is modest — 14% more capacity (100Ah vs 88Ah) and 9% more cold-cranking (870A vs 800A EN); a smaller step than most buyers assume, so many won't feel the difference.
- Length is the real blocker, not power — the 60038 is 40mm longer (393mm vs 353mm), and European trays are tight, so fit usually decides the choice.
- 800A EN is not 800 SAE CCA — the 58827 is rated in EN, and EN and SAE test differently, so a raw-number comparison against a JIS or BCI battery misleads.
- Terminals are identical, so polarity won't decide — the 58827 (DIN88) and 60038 (DIN100) both use the T1 European conical terminal, so the only physical variable between them is length.
- Reserve capacity barely moves — 170 min (DIN100) vs 150 min (DIN88) is a 20-minute gap, so upgrading for RC alone rarely justifies the cost.
Model Photos¶

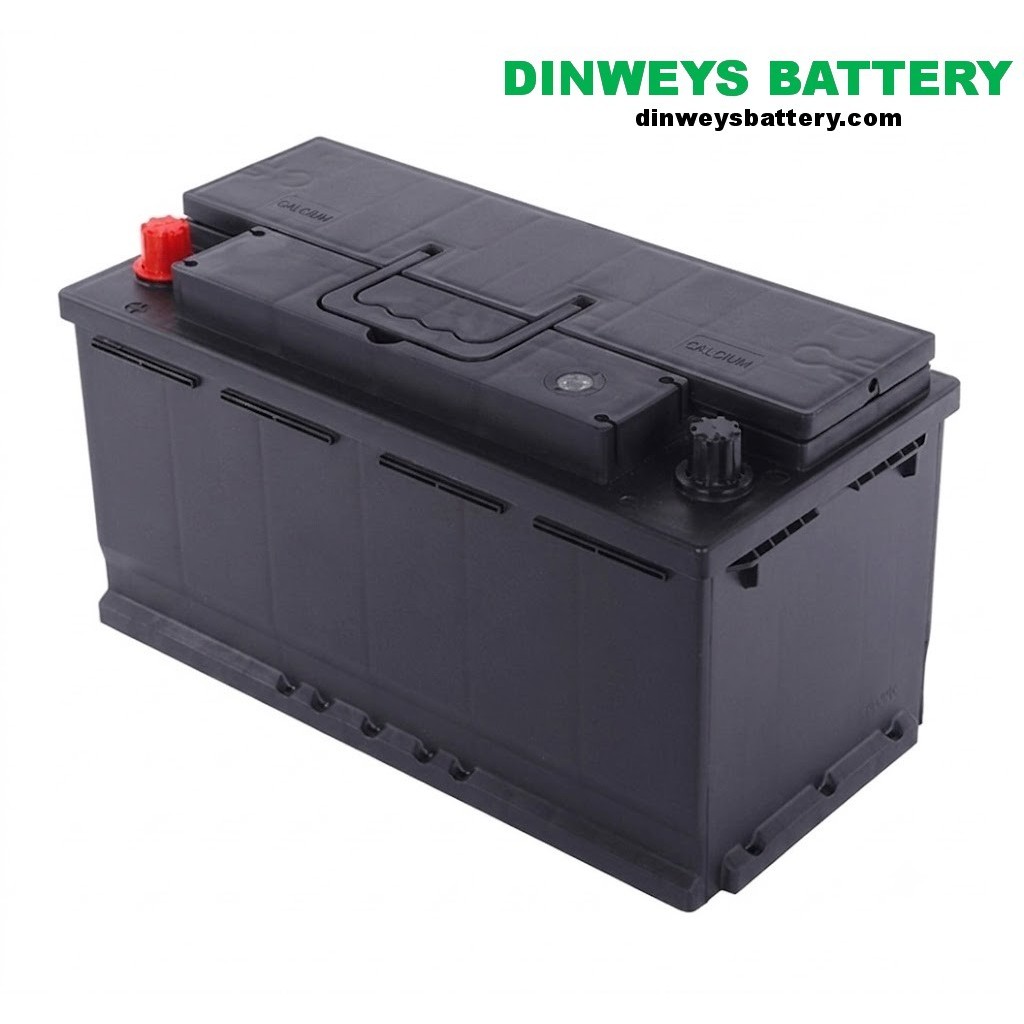

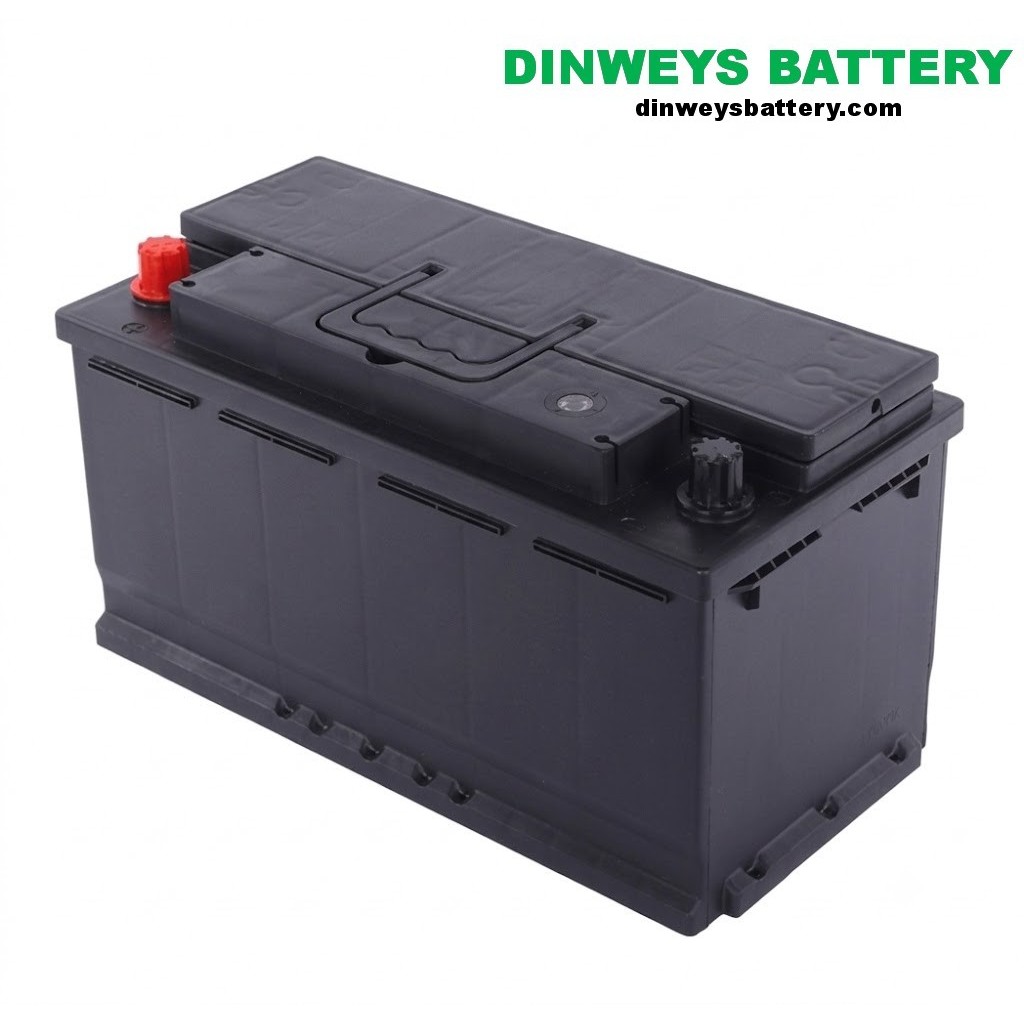

| DIN88 (58827) | DIN100 (60038) |
|---|---|
 |
 |
What "DIN88" and "DIN100" Mean¶
In the DIN/EN system, the number reflects the battery's capacity in amp-hours. DIN88 is an 88Ah battery; DIN100 is a 100Ah battery. DINWEYS manufactures these as the 58827 and 60038 models.
| Specification | 58827 (DIN88) | 60038 (DIN100) |
|---|---|---|
| Voltage | 12V | 12V |
| Capacity (C20) | 88 Ah | 100 Ah |
| Cold cranking (EN) | 800 A | 870 A |
| Reserve capacity (RC) | 150 min | 170 min |
| Dimensions (L×W×H) | 353 × 175 × 190 mm | 393 × 175 × 190 mm |
| Terminal | European conical (T1) | European conical (T1) |
| Typical use | European trucks, buses | Larger trucks, cold climates |
Specifications from Chengguang Power Tech Co., Ltd. technical data center.
Side-by-Side Comparison¶
Capacity and CCA¶
The DIN100 delivers about 14% more capacity (100Ah vs 88Ah) and 9% more cold-cranking (870A vs 800A EN) than the DIN88. Choose DIN100 for:
- Larger European truck engines (MAN, Scania, Volvo, Mercedes, DAF)
- Colder climates where extra CCA matters
- Vehicles with heavier electrical loads
Size¶
The DIN100 is 40mm longer (393mm vs 353mm) than the DIN88. Before choosing, confirm your battery tray length.
The 40mm is almost pure volume, not efficiency: the DIN88 displaces roughly 11.7 L (353×175×190 mm) and the DIN100 roughly 13.1 L (393×175×190 mm) — an 11% larger case for 14% more capacity. Energy density barely moves: about 7.5 Ah/L for the DIN88 versus 7.6 Ah/L for the DIN100. The DIN100's extra 12Ah is bought with size, not with a denser battery, so the only reason to choose it is the extra CCA and capacity — not because it is a fundamentally better cell.
Cost¶
The DIN88 is the more economical choice. If your engine starts reliably on 800A EN, the DIN88 provides the same build quality at lower cost and weight.
How to Choose¶
| Question | Choose DIN88 (58827) | Choose DIN100 (60038) |
|---|---|---|
| Tray length | Up to ~353mm | Up to ~393mm |
| Engine size | Standard European truck | Larger / high-demand |
| Climate | Temperate | Cold |
| CCA need | Up to ~800A EN | Up to ~870A EN |
Confirm against your manual
Always confirm the required size and cold-cranking rating in your vehicle manual. The wrong physical size cannot be safely installed.
A Note on EN vs SAE Ratings¶
The DIN88 and DIN100 are rated in EN cold-cranking amps, not SAE. EN and SAE use slightly different test temperatures and voltage thresholds, so an "800A EN" is not directly comparable to an "800 CCA SAE." When comparing a DIN battery against a JIS or BCI option, normalize both to the same standard. See JIS vs DIN vs BCI standards.
24V Systems¶
Both are 12V batteries. In 24V European truck systems, two are wired in series — for example two DIN100 units for maximum 24V cranking power. Always replace the pair together.
References¶
Related¶
Find the Right Battery¶
Need a specific model or datasheet? Browse the DINWEYS product range (DIN heavy-duty batteries) or contact us for a quote.
Frequently Asked Questions
What is the difference between DIN88 and DIN100?
DIN100 (model 60038) has higher capacity (100Ah vs 88Ah) and cold-cranking rating (870A EN vs 800A EN) and is physically longer (393mm vs 353mm). DIN88 (model 58827) is the shorter, lighter option.
Is DIN100 better than DIN88?
DIN100 has more capacity and CCA, but it is physically longer. If your battery tray only fits DIN88, or your engine does not need the extra power, DIN88 is the correct choice.
Are DIN88 and DIN100 interchangeable?
No. They have different lengths (353mm vs 393mm). A battery must physically fit the tray — always match the size.
What CCA does a DIN100 provide?
The DINWEYS 60038 (DIN100) provides 870A EN cold-cranking amps — suitable for larger European truck engines.
What does EN CCA mean vs SAE CCA?
EN (European Norm) cold-cranking amps are measured differently from SAE CCA — an 870 A EN rating is not the same as 870 SAE. The values are not directly interchangeable; compare within the same standard.
